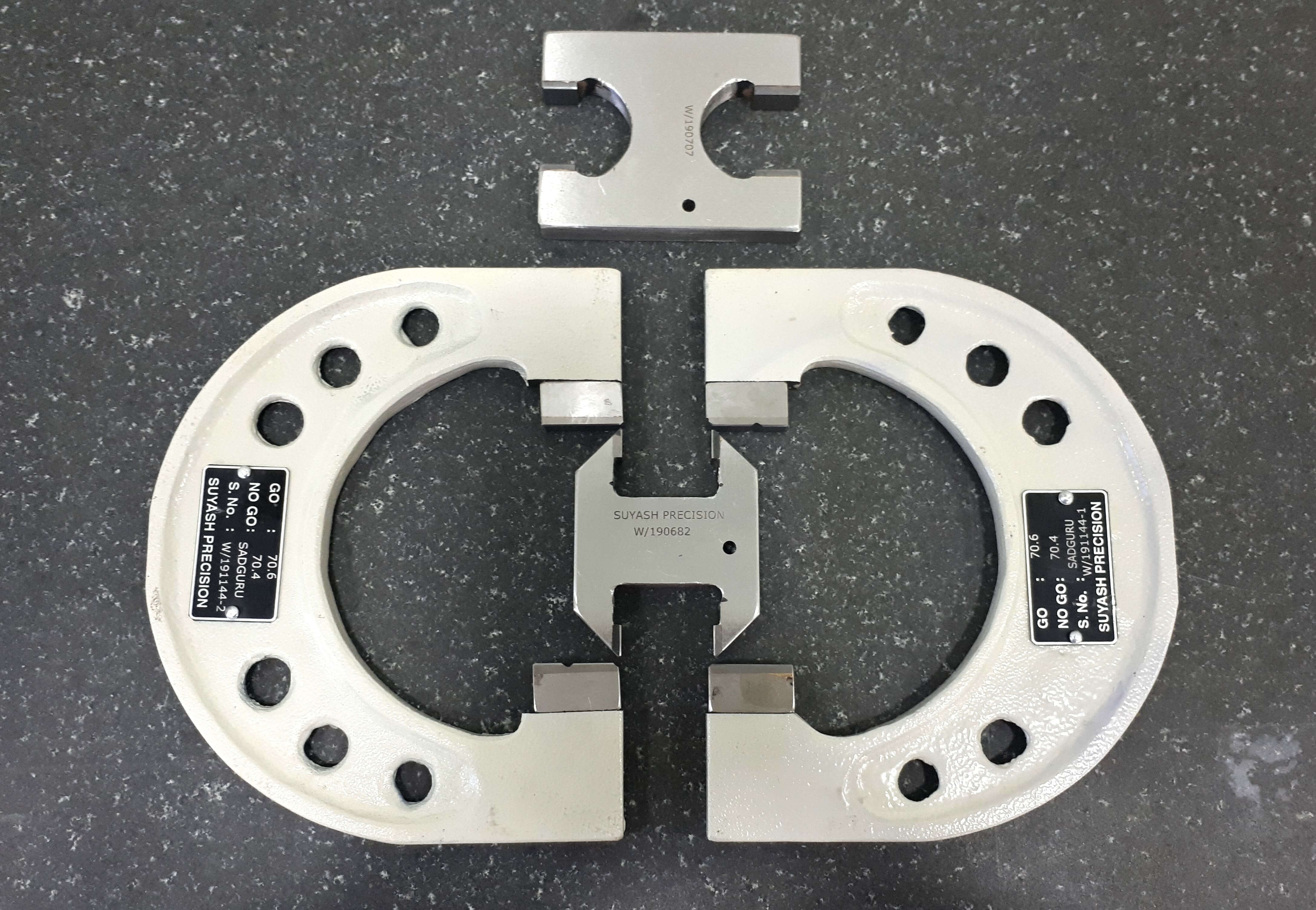

Snap Gauges…
We offer Snap gauges in Steel and Carbide. Single ended and double ended types of snap gauges are available. They are also designed as per customer specification for checking of length, thickness, span of gear teeth & groove diameters.
- Snap gauges can be supplied as per customer design.
- Supplied normally in single ended design.
- GO & NOGO sizes are manufactured according to IS:3455 if not specified
Technical Specifications
CARBIDE

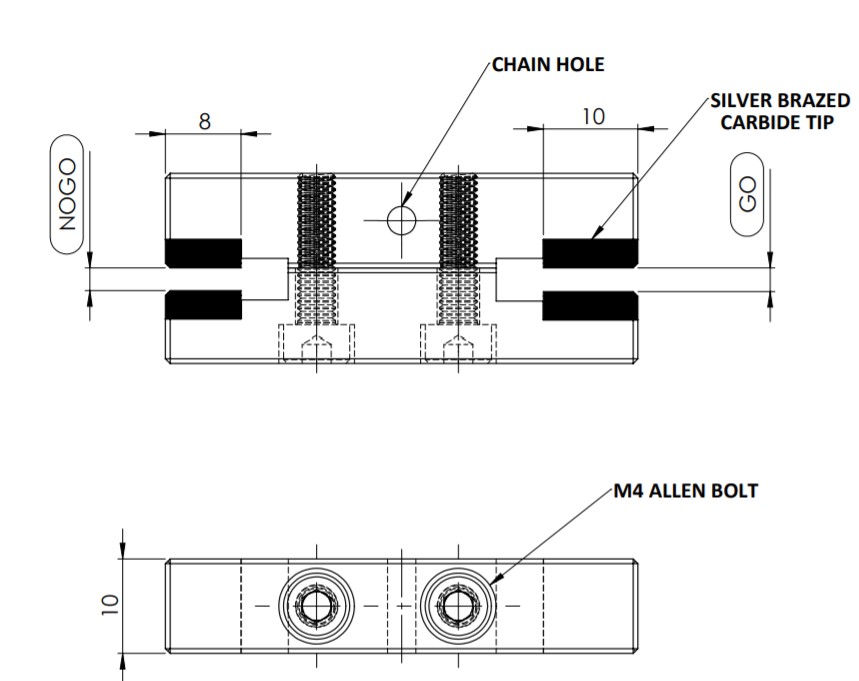

SNAP 0-5

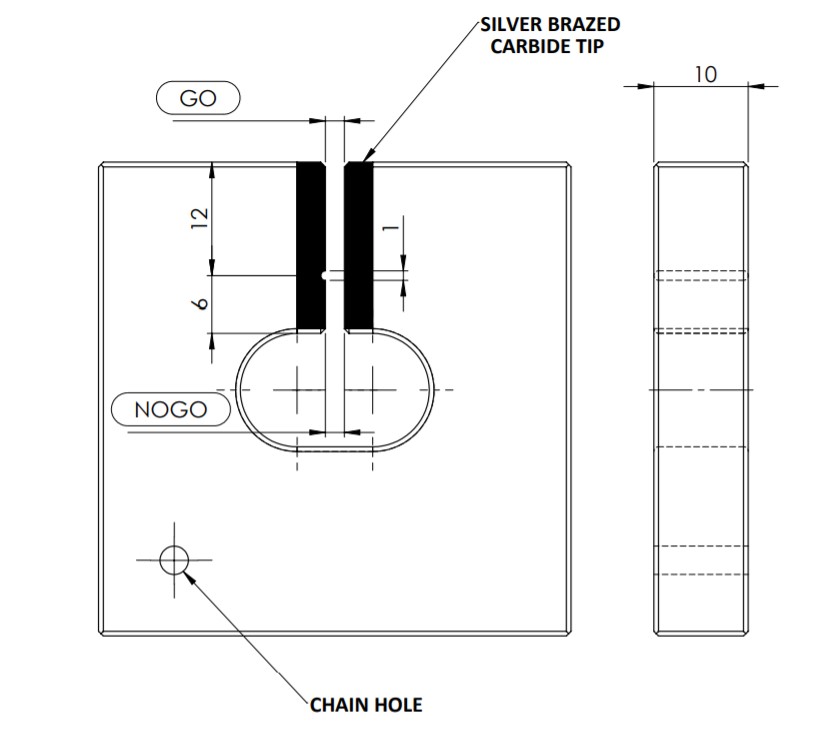

SNAP 5-16

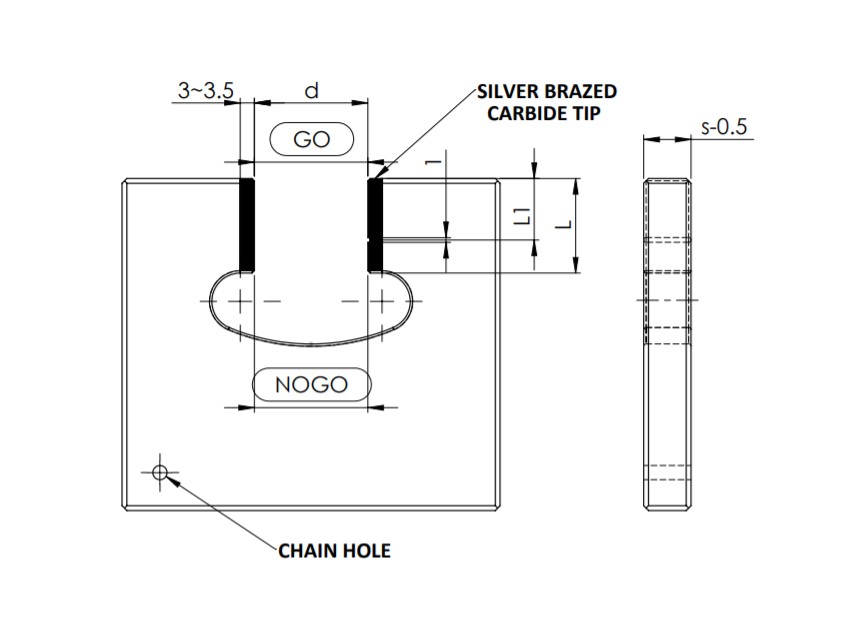

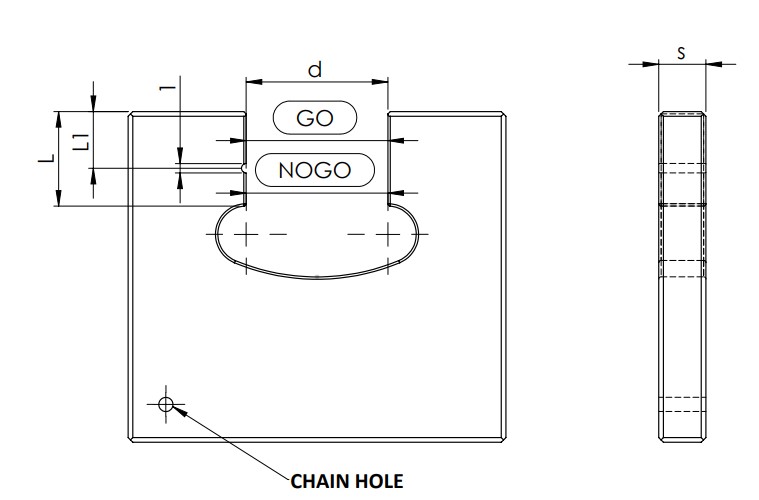

SNAP 16-60
| NOMINAL DIA (d) in mm | GO LENGTH (L1) in ‘mm’ | NOGO LENGTH (L2) in mm’ | THICKNESS(s) in ‘mm’ | |
|---|---|---|---|---|
| ABOVE | UP TO & INCLUDING | |||
| 16 | 25 | 20 | 7 | 10 |
| 25 | 32 | 20 | 7 | |
| 32 | 40 | 25 | 9 | |
| 40 | 50 | 25 | 9 | |
| 50 | 60 | 28 | 10 | |

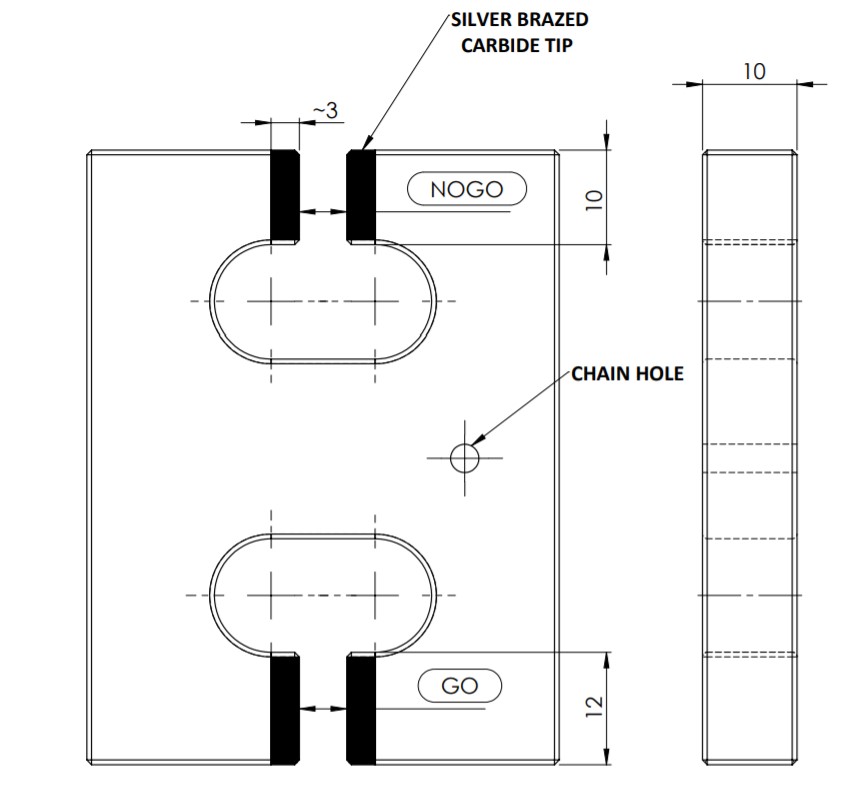

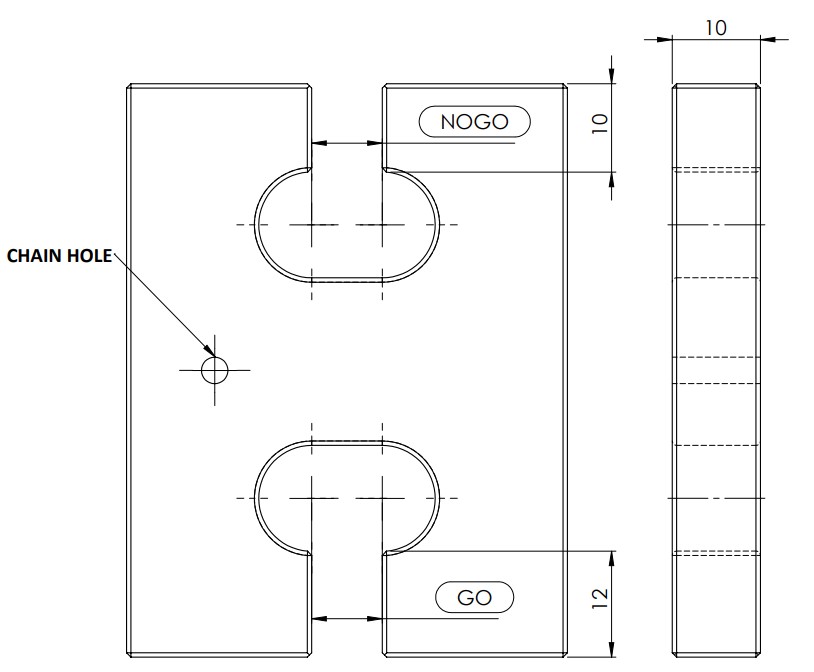

DE SNAP 5-16

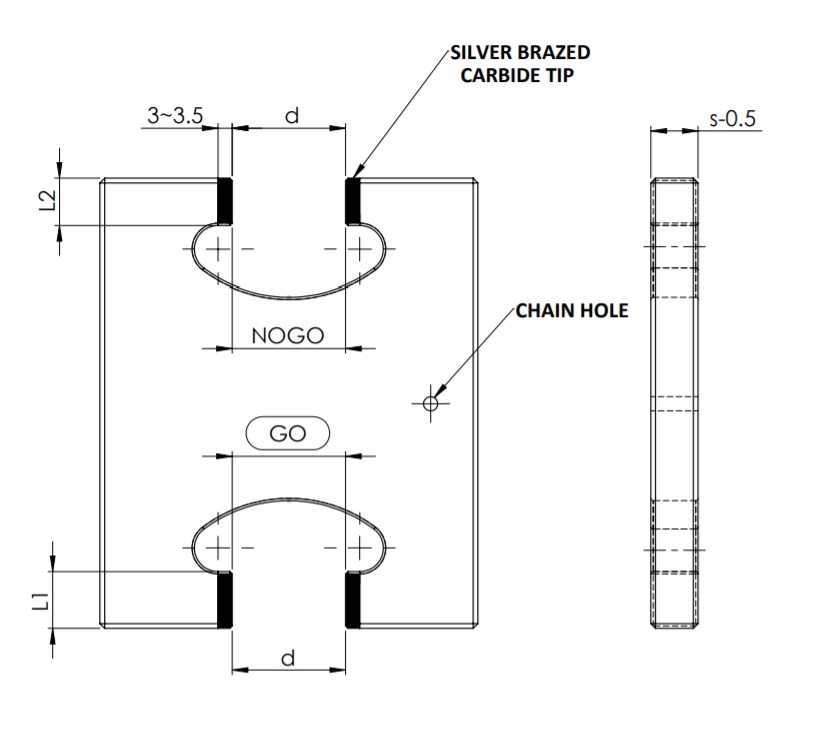

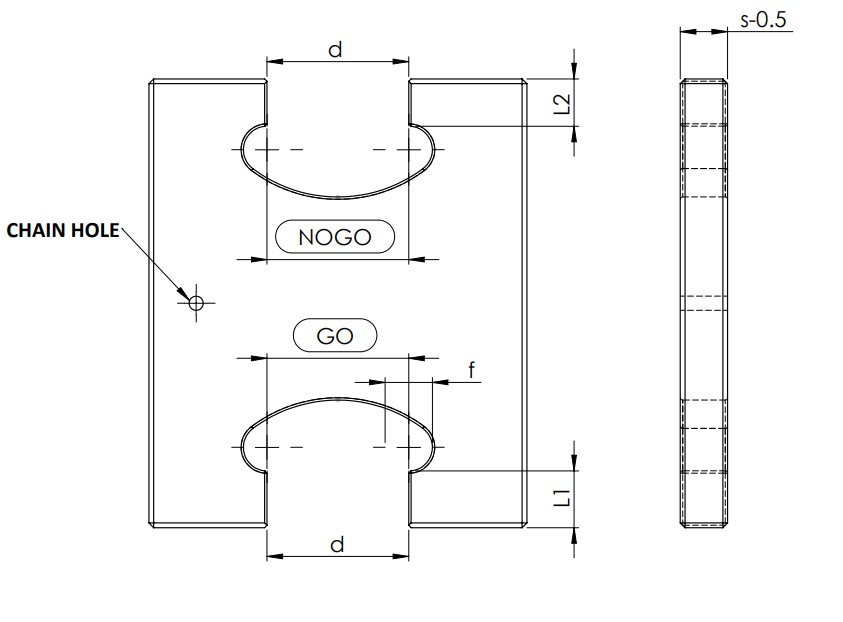

DE SNAP 16-60
| NOMINAL DIA (d) in mm | GO LENGTH (L1) in ‘mm’ | NOGO LENGTH (L2) in mm’ | THICKNESS(s) in ‘mm’ | |
|---|---|---|---|---|
| ABOVE | UP TO & INCLUDING | |||
| 16 | 60 | 12 | 10 | 10 |

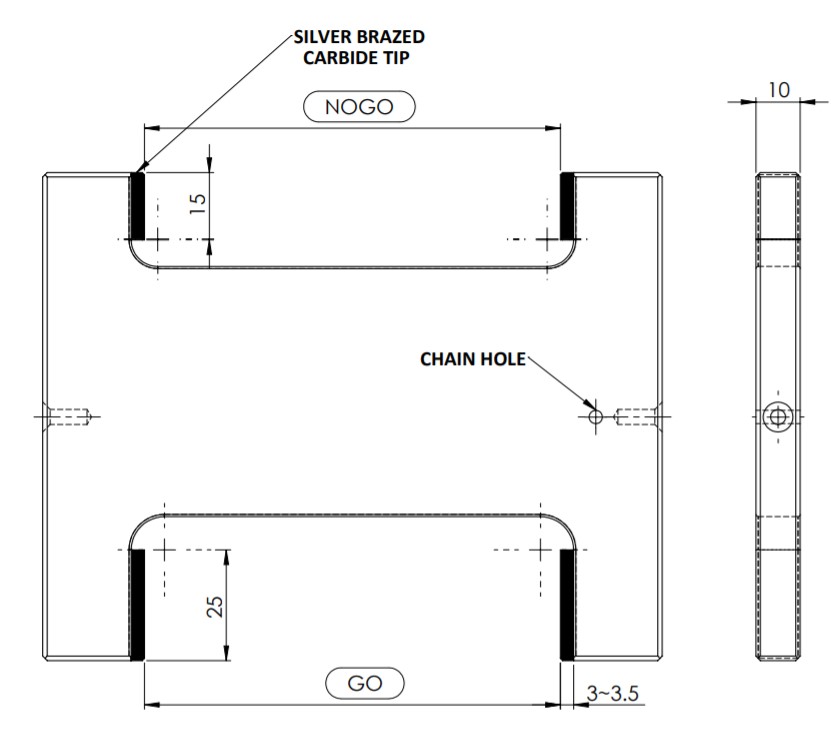

I-TYPE SNAP 60-260

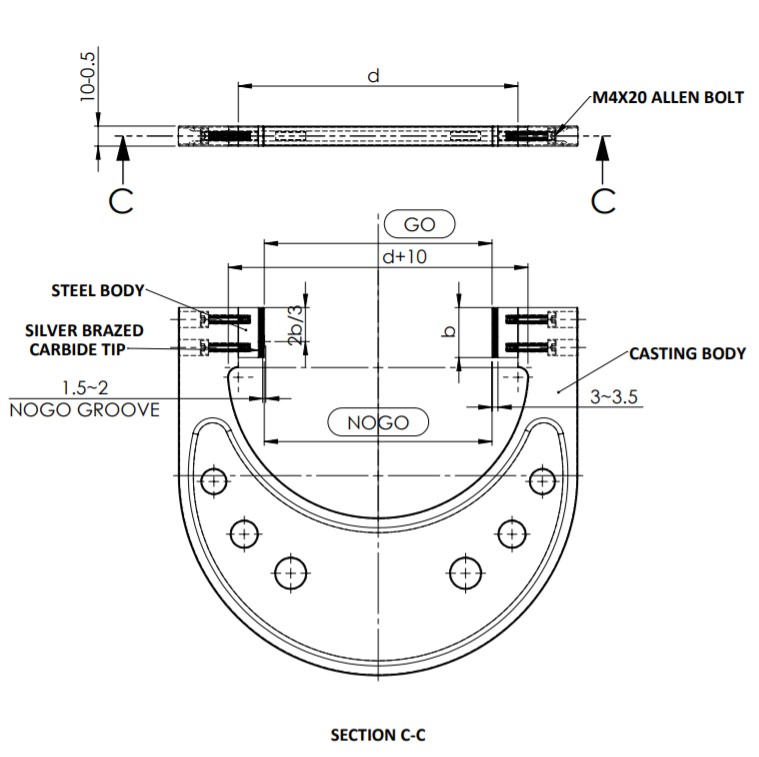

CASTING SNAP 60-170

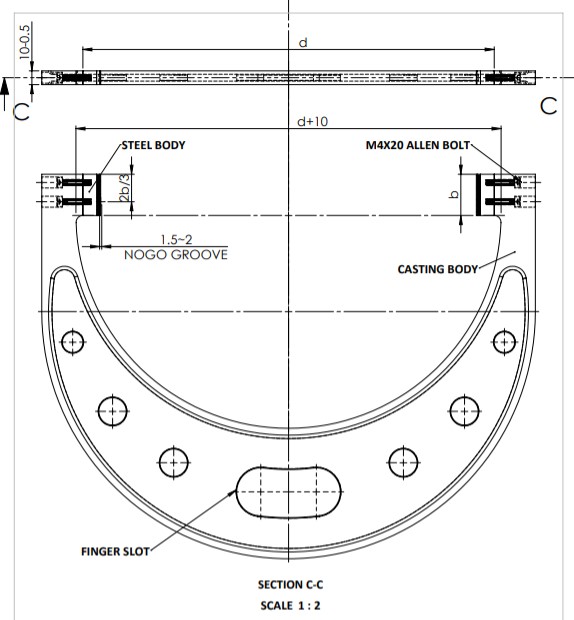

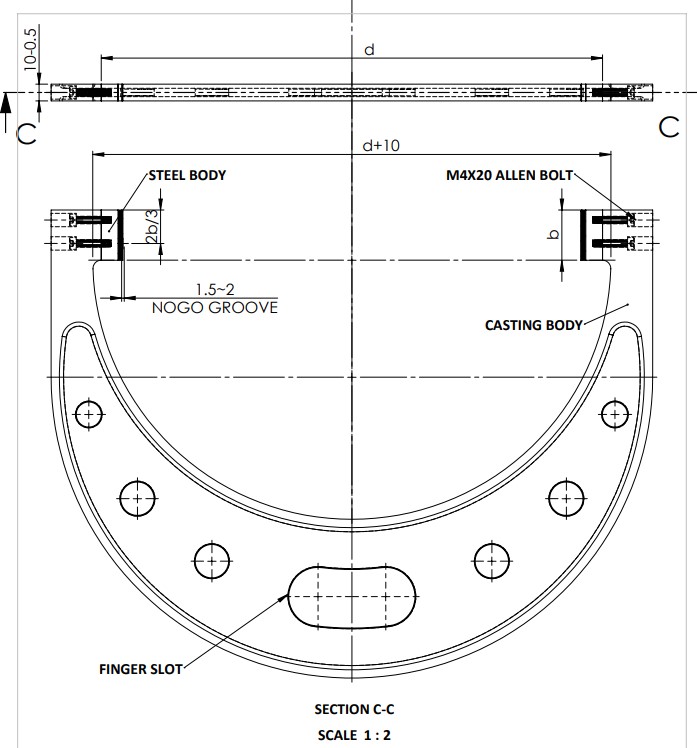

CASTING SNAP 170-350
STEEL

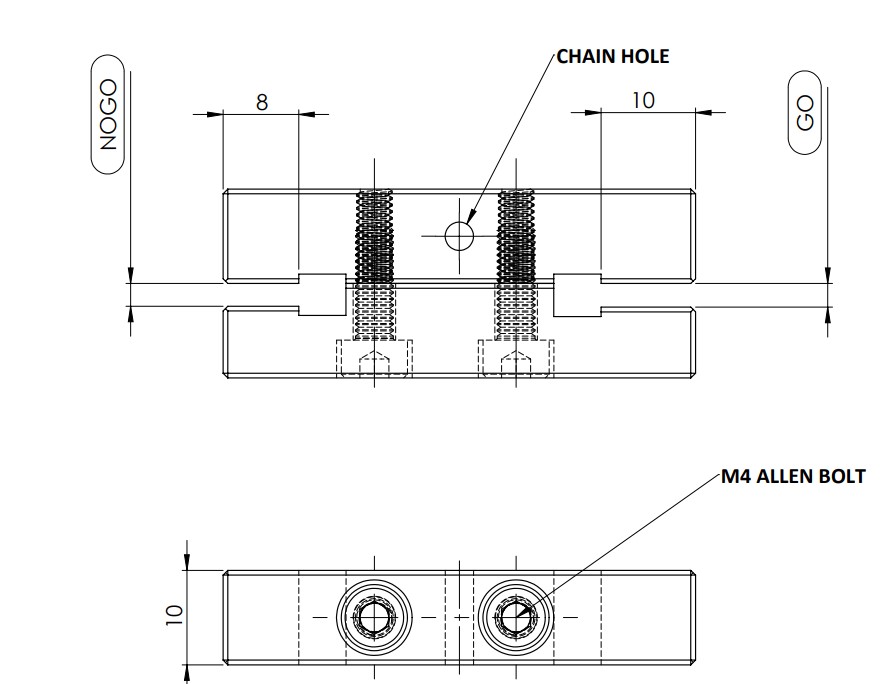

TWO PIECE SNAP 0-5

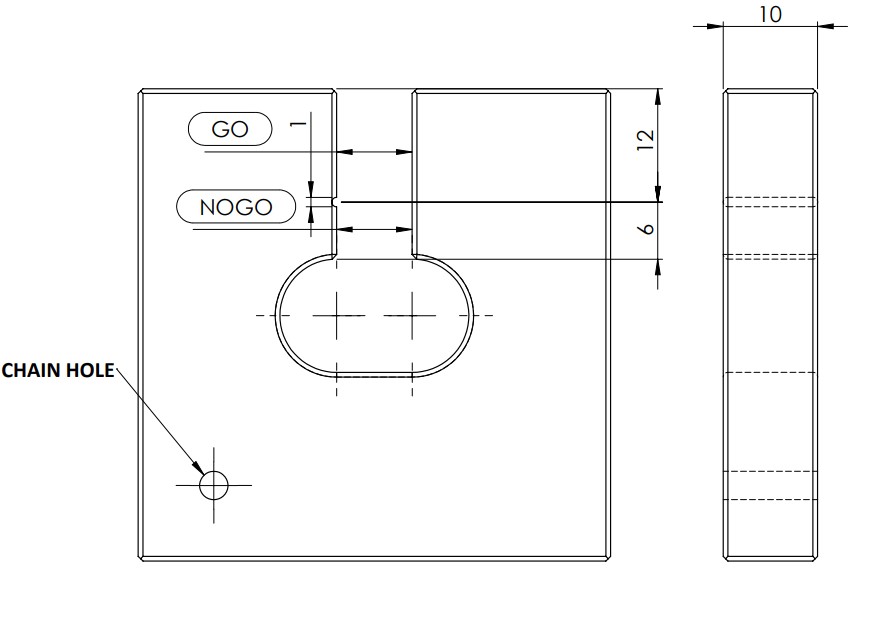

SNAP 5-16
SNAP 16-60
| NOMINAL DIA (d) in mm | GO LENGTH (L1) in ‘mm’ | NOGO LENGTH (L2) in mm’ | THICKNESS(s) in ‘mm’ | |
|---|---|---|---|---|
| ABOVE | UP TO & INCLUDING | |||
| 16 | 25 | 20 | 7 | 10 |
| 25 | 32 | 20 | 7 | |
| 32 | 40 | 25 | 9 | |
| 40 | 50 | 25 | 9 | |
| 50 | 60 | 28 | 10 | |
DE SNAP 5-16
DE SNAP 16-60
| NOMINAL DIA (d) in mm | GO LENGTH (L1) in ‘mm’ | NOGO LENGTH (L2) in mm’ | THICKNESS(s) in ‘mm’ | |
|---|---|---|---|---|
| ABOVE | UP TO & INCLUDING | |||
| 16 | 60 | 12 | 10 | 10 |

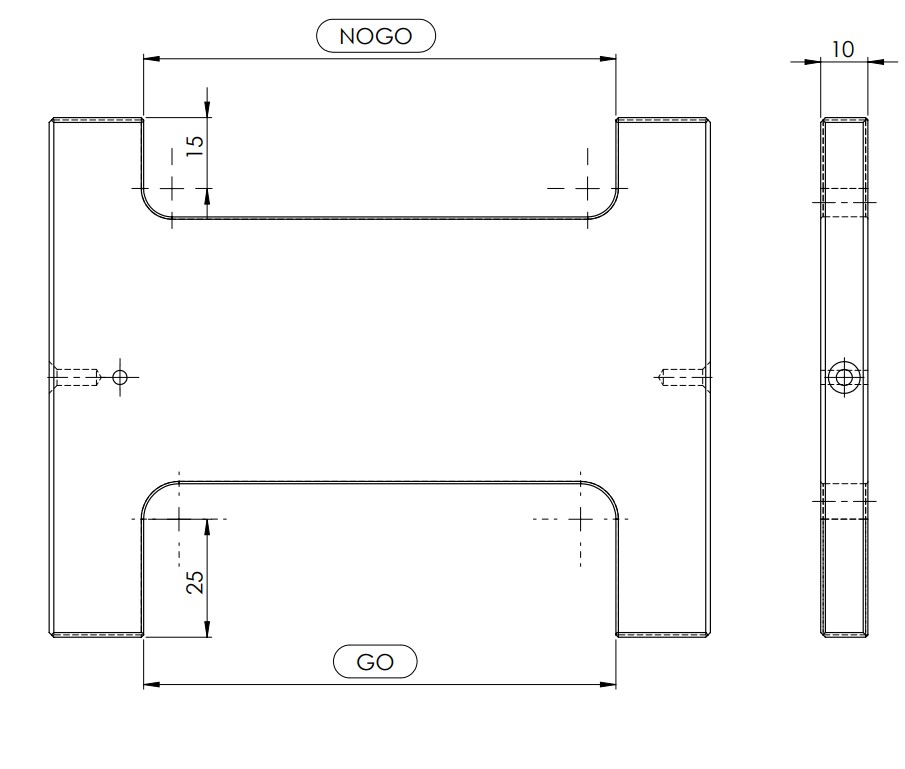

I-TYPE SNAP 60-260

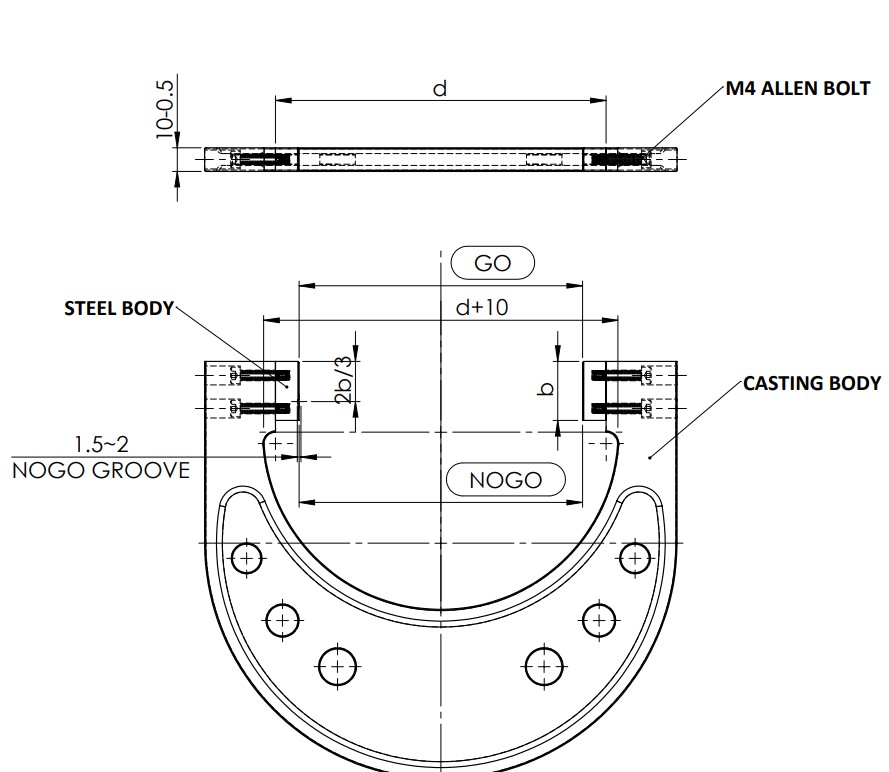

CASTING SNAP 60-170
CASTING SNAP 170-350
SPAN GUAGES

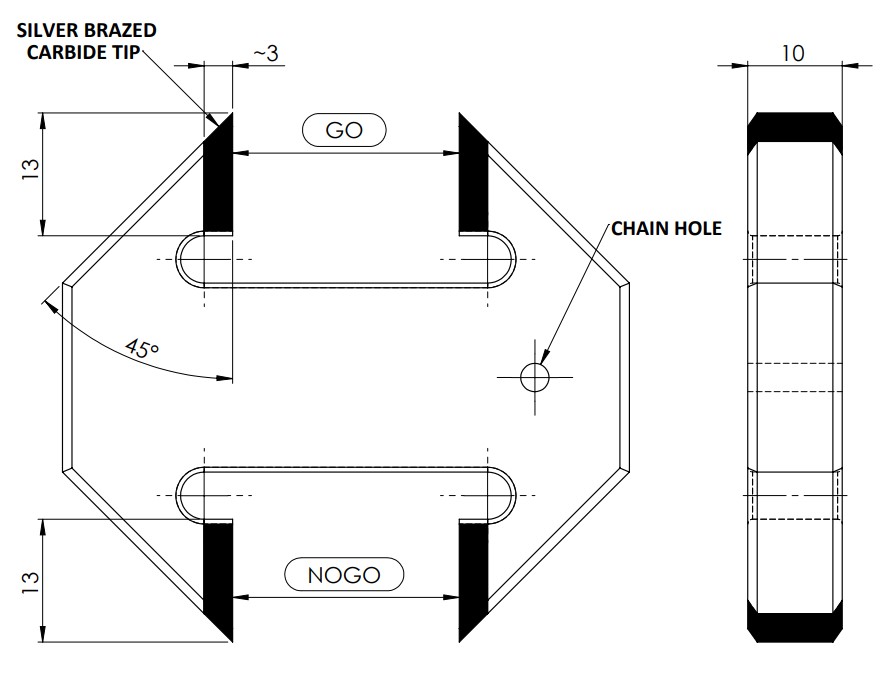

SPAN 5-60 C

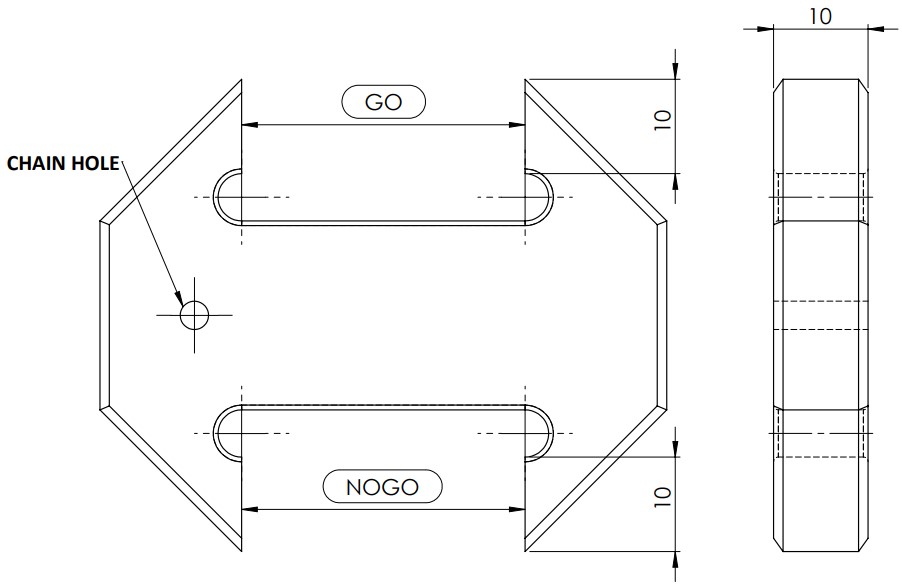

SPAN 5-60
