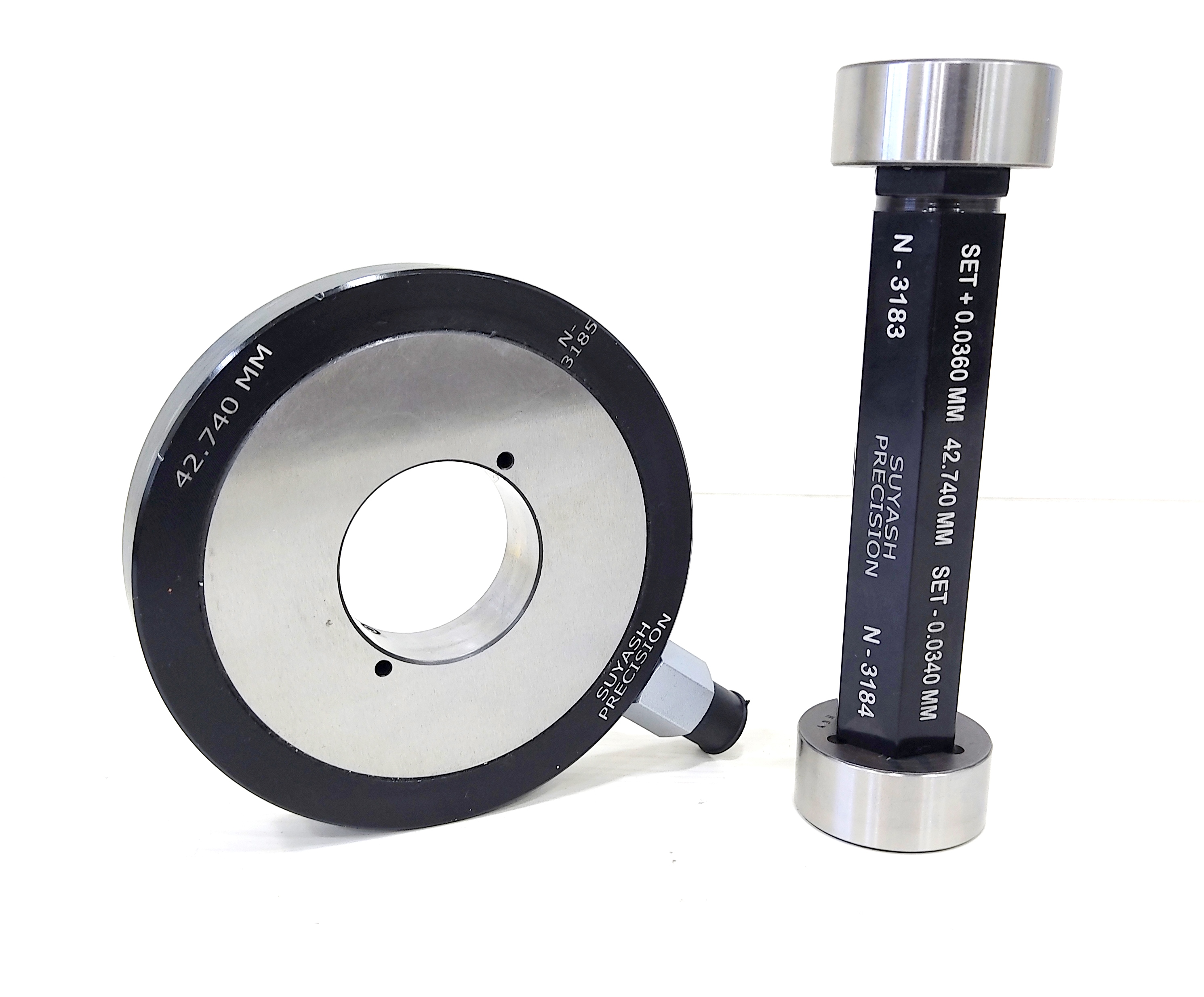

Air Ring Gauges…
- Can be supplied in both steel & carbide
- For Steel range: Ø5 to 100mm
- For Carbide range: Ø5 to 50mm
- Standard Air Plug Gauge is provided with 2-Jet design
- Multi jet design can be catered for ovality/lobe checking purpose.
- Bench mounting & Pedestal Mountings can be provided as per requirements.
- Supplied for Mod 1A, Mod 2A, C-jet & Digital Air Gauge Units.
- For Blind bore inspection or any other special requirement please send component drawing for better clarification

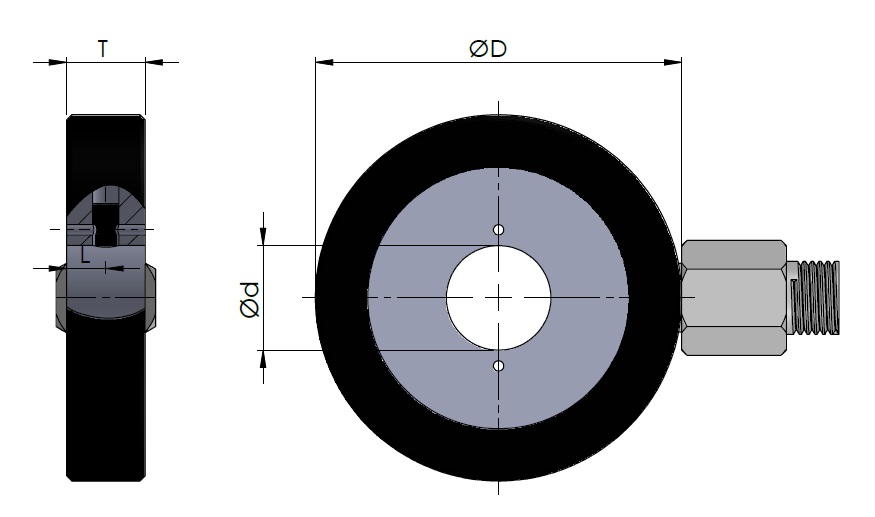

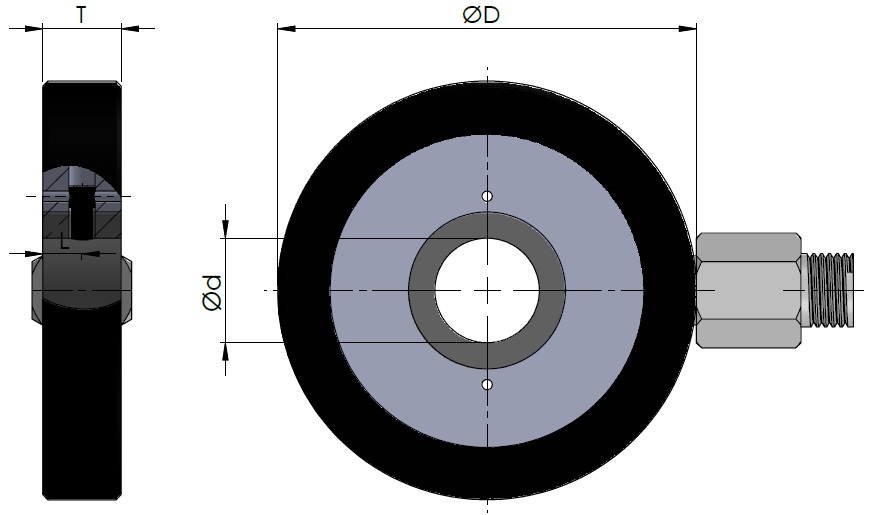

Technical Specifications
CARBIDE
| NOMINAL DIA (d) in mm |
THINKNESS (T) |
JET POSITION (L) |
| ABOVE |
UP TO & INCLUDING |
THROUGH |
| 5 |
32 |
15 |
7.5 |
| 32 |
40 |
15 |
7.5 |
| 40 |
50 |
20 |
10 |
STEEL
| NOMINAL DIA (d) in mm |
THINKNESS (T) |
JET POSITION (L) |
| ABOVE |
UP TO & INCLUDING |
THROUGH |
| 5 |
32 |
15 |
7.5 |
| 32 |
40 |
20 |
10 |
| 40 |
50 |
20 |
10 |
| 50 |
65 |
20 |
10 |
| 65 |
100 |
20 |
10 |
