Plug Gauges…

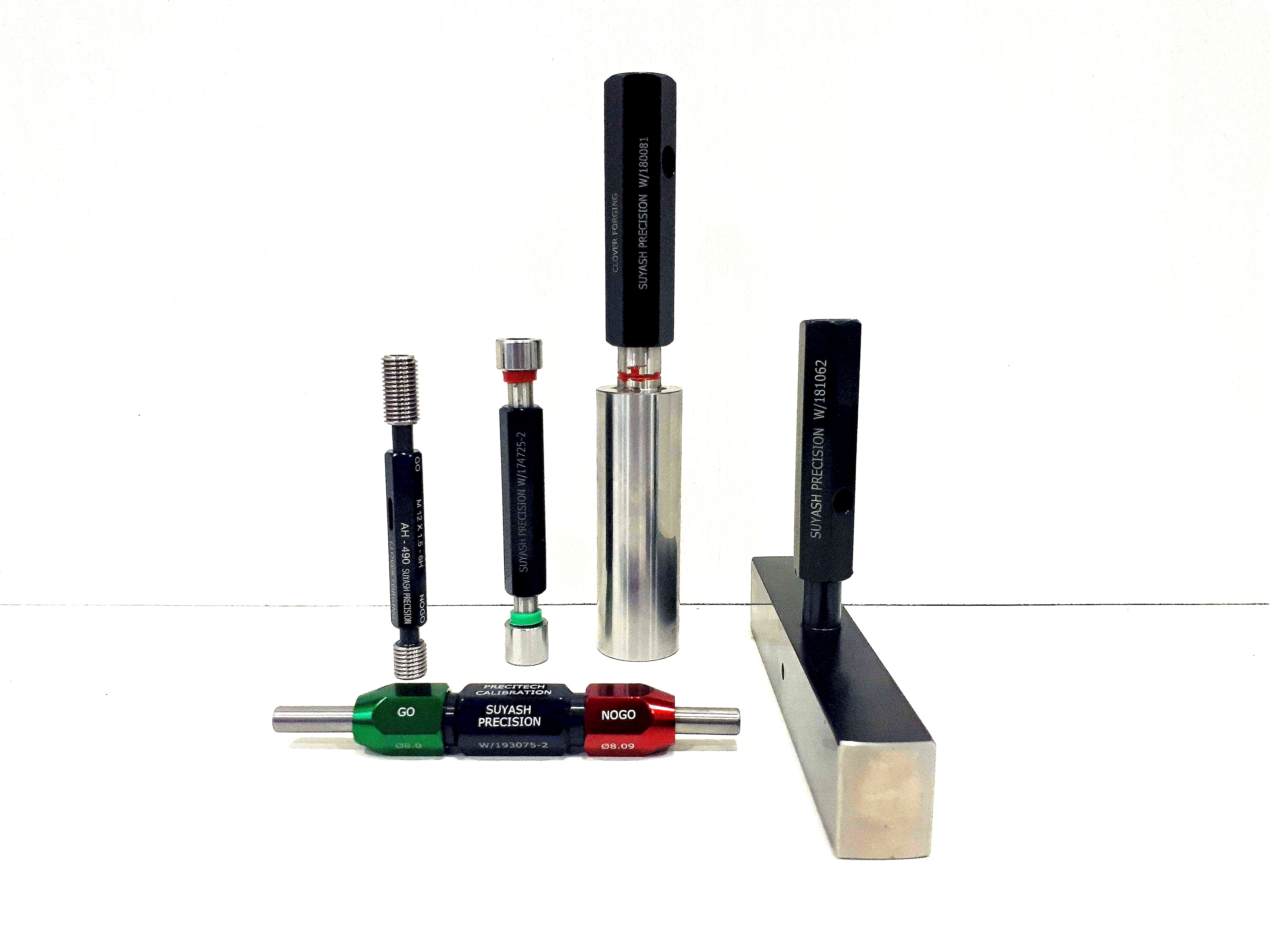

Plug gauges are used for inspecting holes or slots. They are also used as Masters for setting of Micrometers, Vernier Calipers etc.

We offer a choice of choosing between GO and NO-GO both made in Tungsten Carbide/Steel and GO in Tungsten Carbide with NO-GO in Steel. The latter type is more popular owing to the cost advantage.

  • Carbide Plug Gauges are normally supplied with GO in high quality Carbide & NOGO in Musco make OHNS Steel.
  • Both can be supplied in high quality carbide as per requirement.
  • GO & NOGO sizes are manufactured according to IS:3455 if not specified.

Signature

Order of extra length as per customer requirement can be processed.

Technical Specifications

CARBIDE

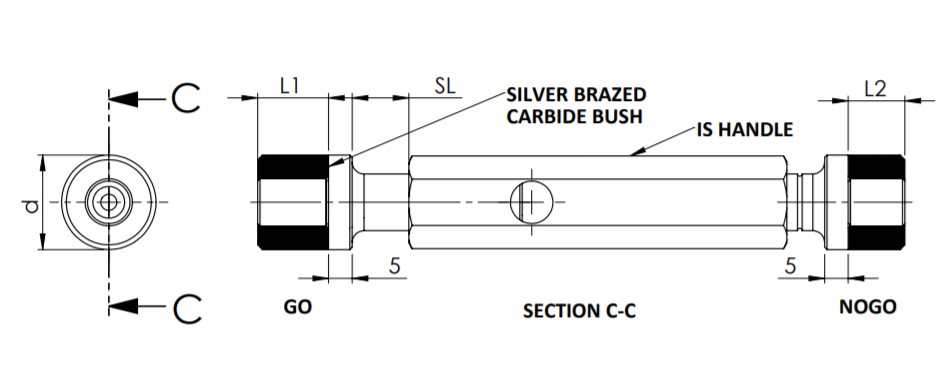

PLUG 10-40
Signature
NOMINAL DIA (d) in mm L1 in ‘mm’ L1 in ‘mm’ S1 in ‘mm’ IS HANDLE NO
ABOVE UP TO & INCLUDING
10 14 12 8 8 4
14 18 15 12 10 5
18 24 15 12 12 6
24 30 15 12 12 6
30 40 15 12 15 7

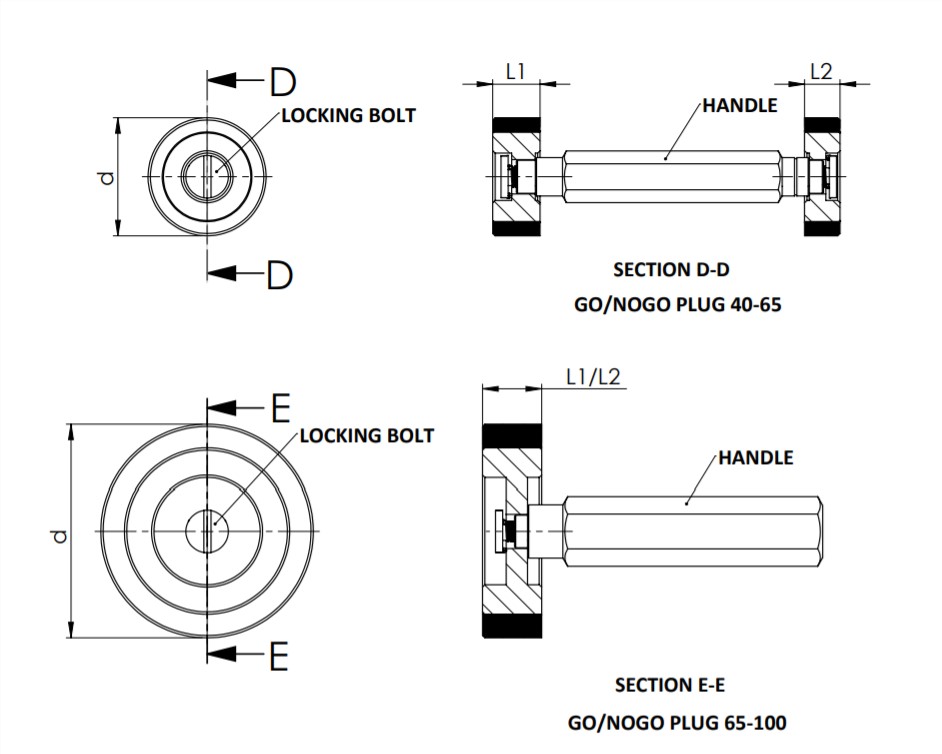

PLUG 40-100
Signature
NOMINAL DIA (d) in mm L1 (GO LENGTH) L2 (NOGO LENGTH) HANDLE
ABOVE UP TO & INCLUDING ALL DIMENSIONS ARE IN MM
40 50 20 15 A-F 19
50 65 20 15 A-F 19
65 80 25 20 A-F 22.5
80 90 25 20 A-F 25.5
90 95 25 20 A-F 25.5
95 100 25 20 A-F 25.5

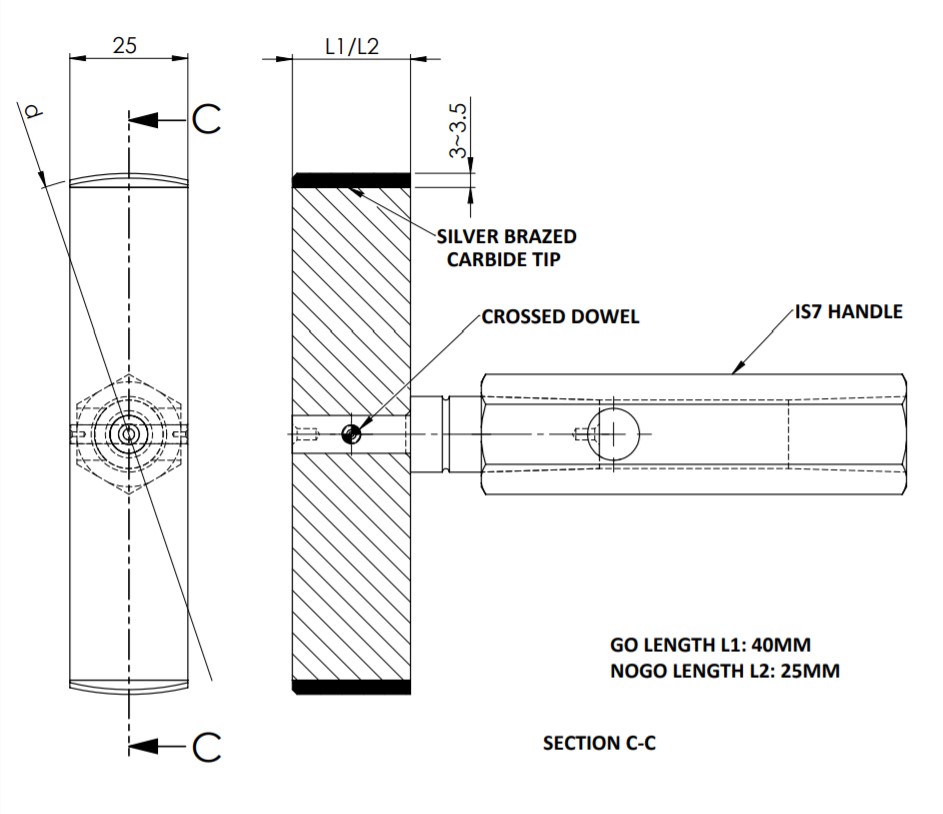

PLUG 100-120
Signature

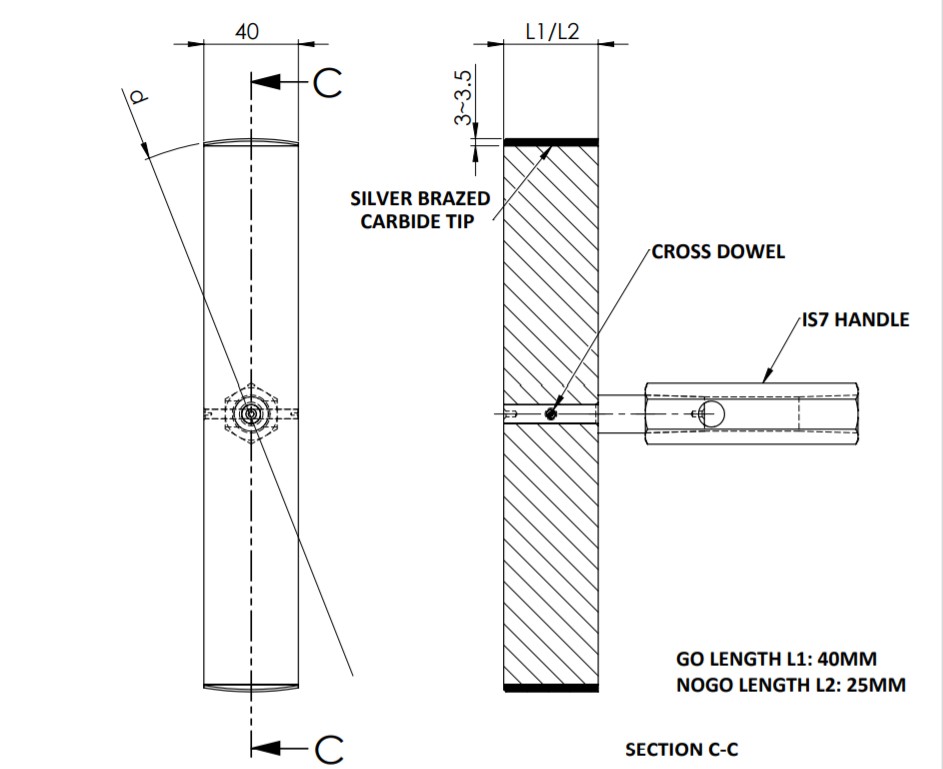

PLUG 120-350
Signature
STEEL

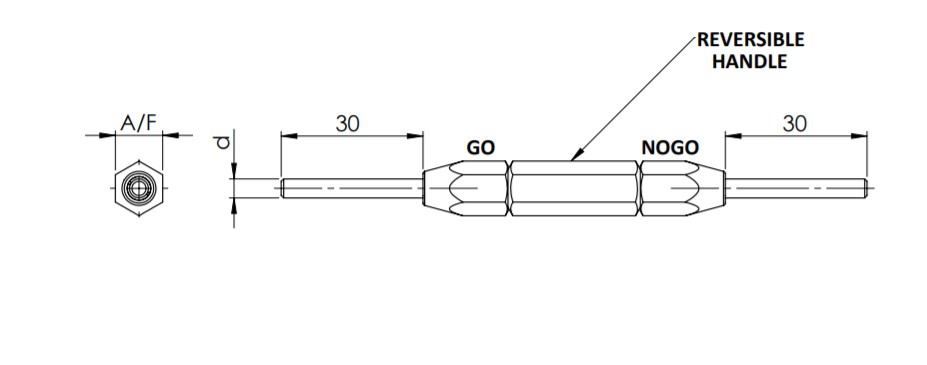

PLUG ASSY 0.5-10
Signature
NOMINAL DIA (d) in mm HANDLE NO A/F
ABOVE UP TO & INCLUDING
0.5 1.5 1W 7
1.5 4.5 2W 10
4.5 7 3W 14
7 10 4W 17

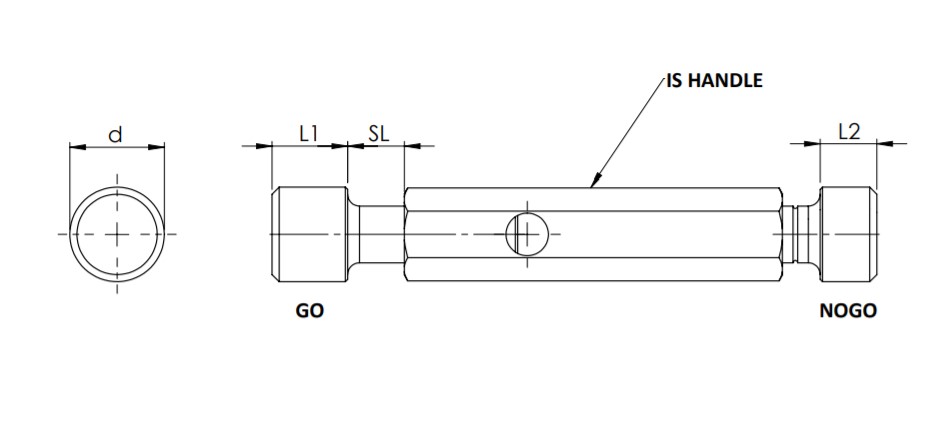

PLUG 10-40
Signature
NOMINAL DIA (d) in mm L1 in ‘mm’ L1 in ‘mm’ S1 in ‘mm’ IS HANDLE NO
ABOVE UP TO & INCLUDING
10 14 17 13 8 4
14 18 20 17 10 5
18 24 20 17 12 6
24 30 20 17 12 6
30 40 20 17 15 7

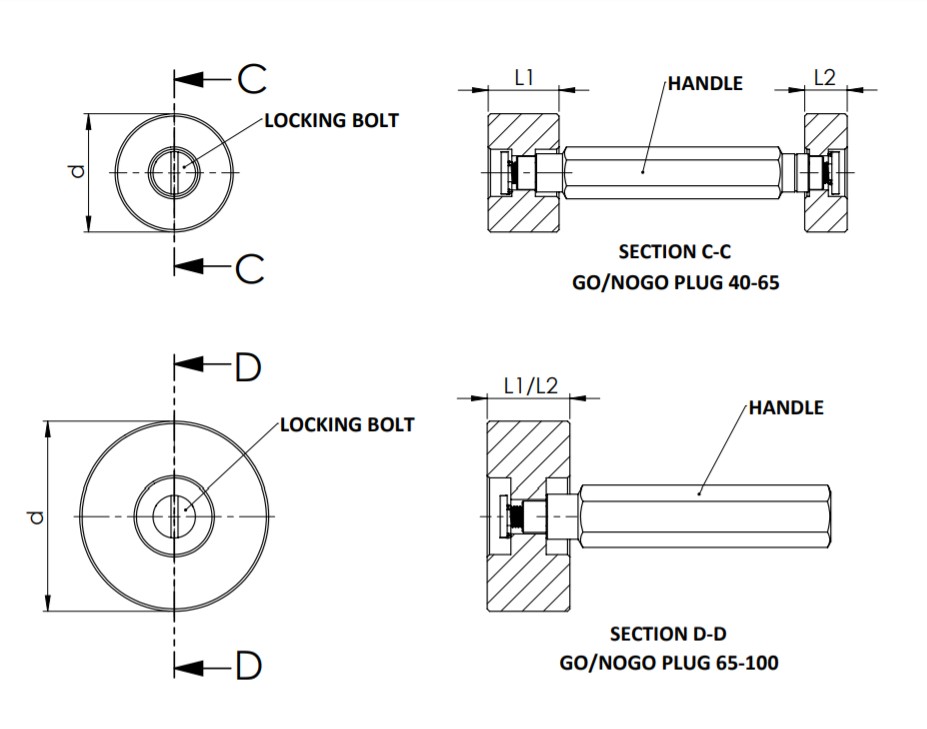

PLUG 40-100
Signature
NOMINAL DIA (d) in mm L1 (GO LENGTH) L2 (NOGO LENGTH) HANDLE
ABOVE UP TO & INCLUDING ALL DIMENSIONS ARE IN MM
40 50 25 18 A-F 19
50 65 30 85 A-F 19
65 80 35 25 A-F 22.5
80 90 35 25 A-F 25.5
90 95 35 25 A-F 25.5
95 100 35 25 A-F 25.5

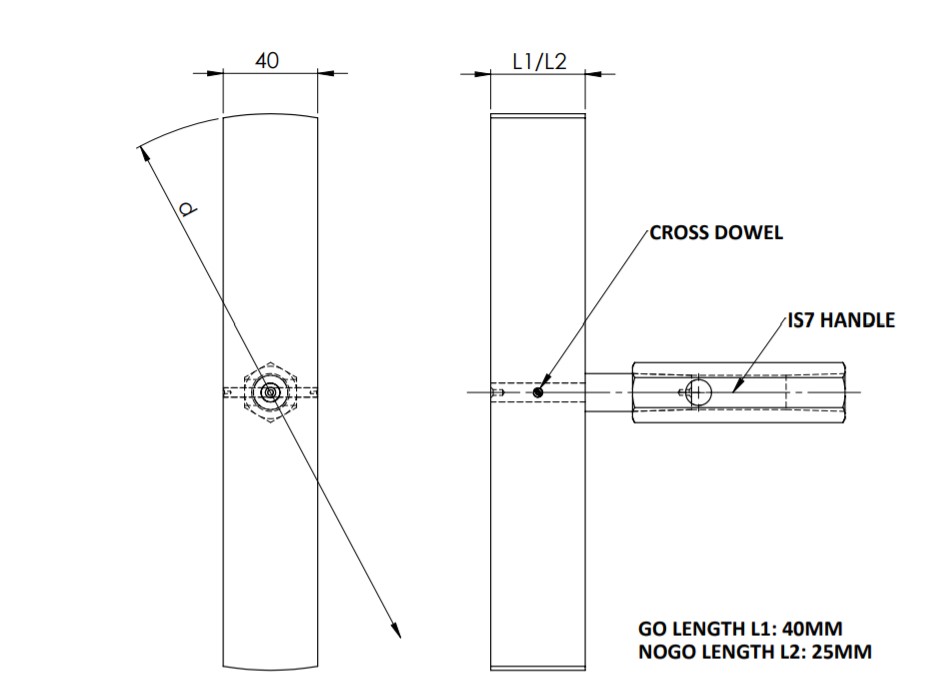

PLUG 100-350
Signature
