Air Snap Gauges

Air Snap Gauges…

• Can be supplied in both steel & carbide
• For Steel range: Ø10 to 100mm
• For Carbide range: Ø10 to 100mm
• Used for Collared diameters where there is no reach of Air Ring Gauge
• Design suitable to check interrupted shaft design. For example crankshaft.

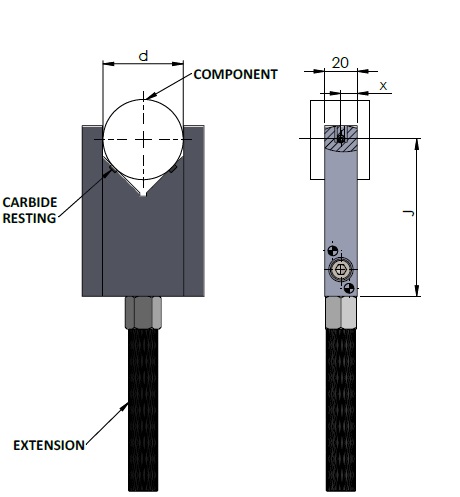

• V-Support is provided for centering the component as shown in design
• Carbide brazed V-Support is provided above 16mm Ø range

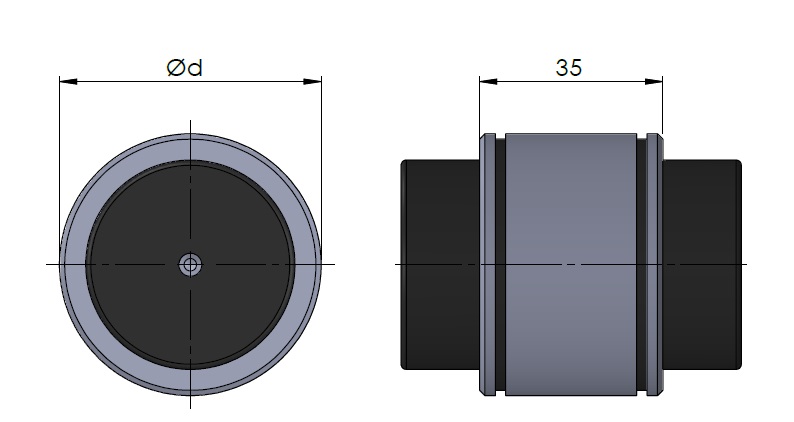

• Setting Masters set is provided as per design shown
• Standard Air Snap Gauge is provided with 2-Jet design
• Multi jet design can be catered for checking multiple step diameters
• Supplied for Mod 1A, Mod 2A, C-jet & Digital Air Gauge Units.
• For Blind bore inspection or any other special requirement please send component drawing for better clarification
