Comparator Stands

Comparator Stands…

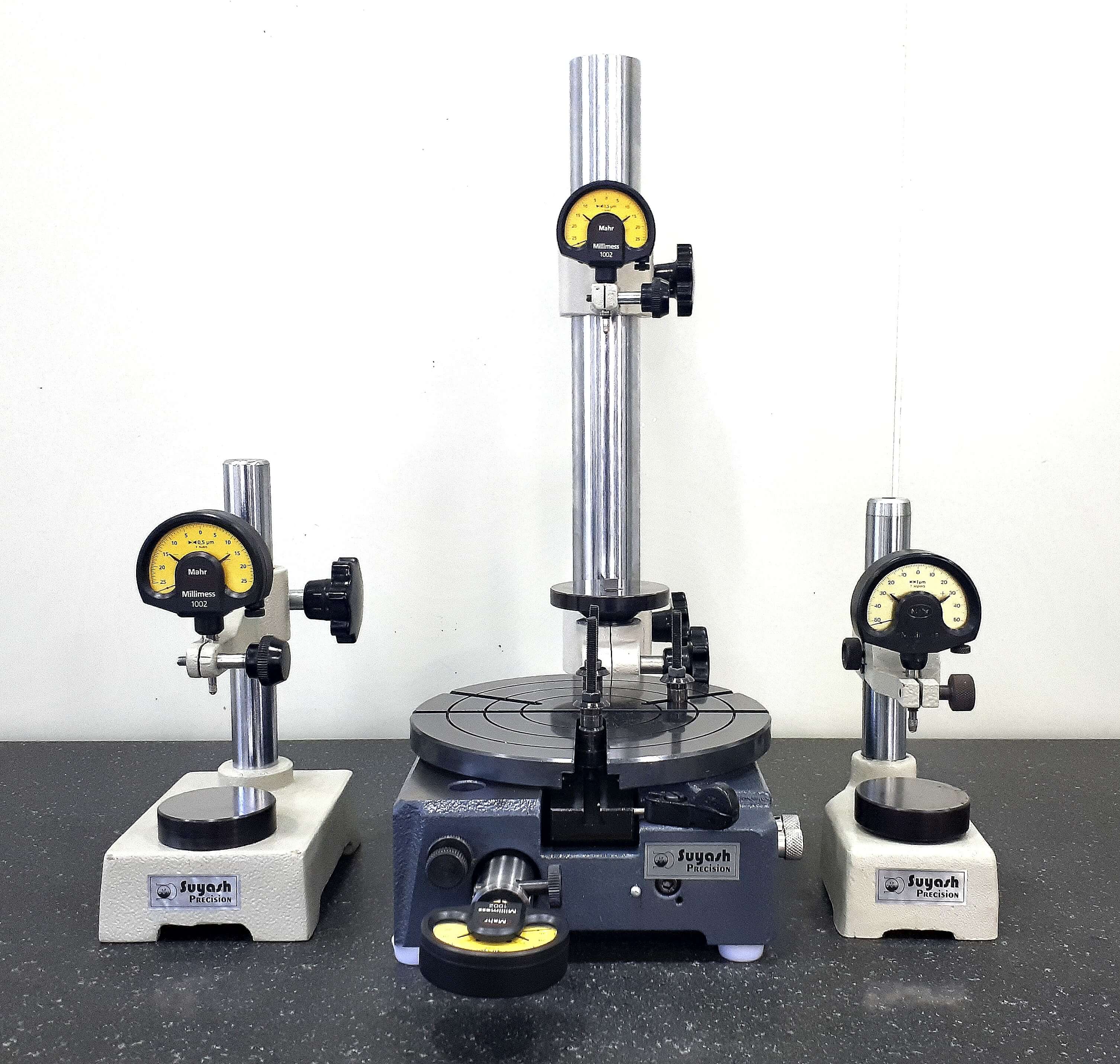

Comparator Stands are basic building-blocks for the assembly of special-purpose, precision-measuring equipment. By mounting precision-measuring instruments onto the stands, all types of measurement including comparative measurement is possible.

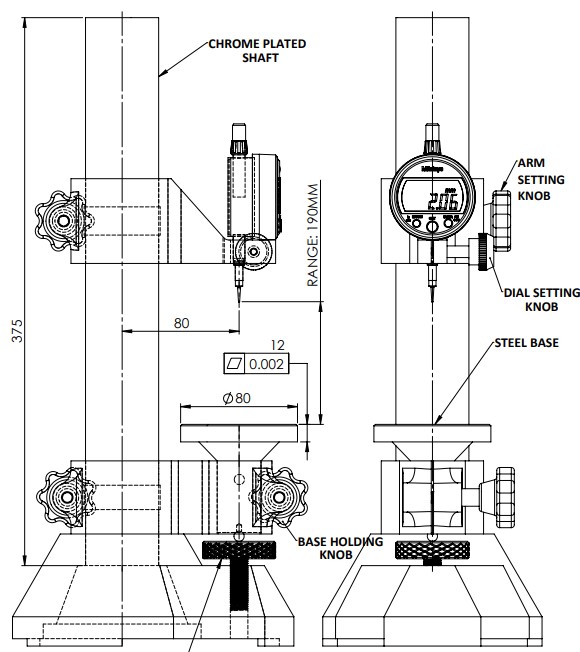

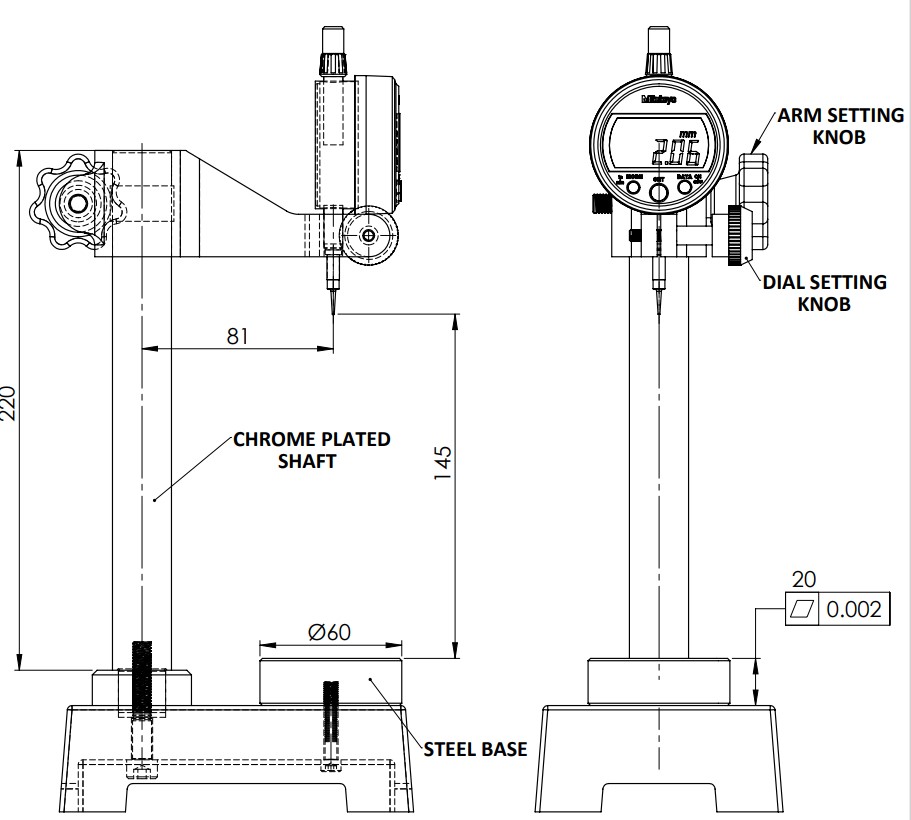

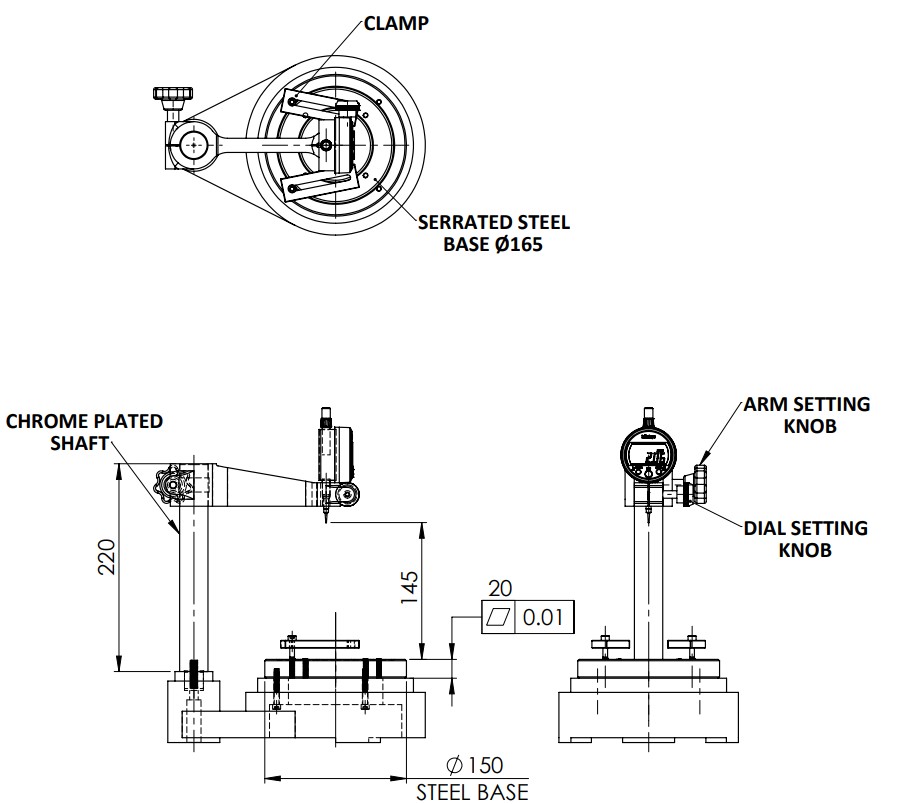

• Consist of a very stable, cast iron base and an upright column with an adjustable arm.
• Can be manufactured with both carbide & steel circular & flat rectangular bases.
• Plain & Serrated column designs as per requirements
• IS: 7599 (Part II) guidelines will be followed for regular comparator stands.
• Mounting holes can be provided for dial shank diameters of 5 & 8mm.
