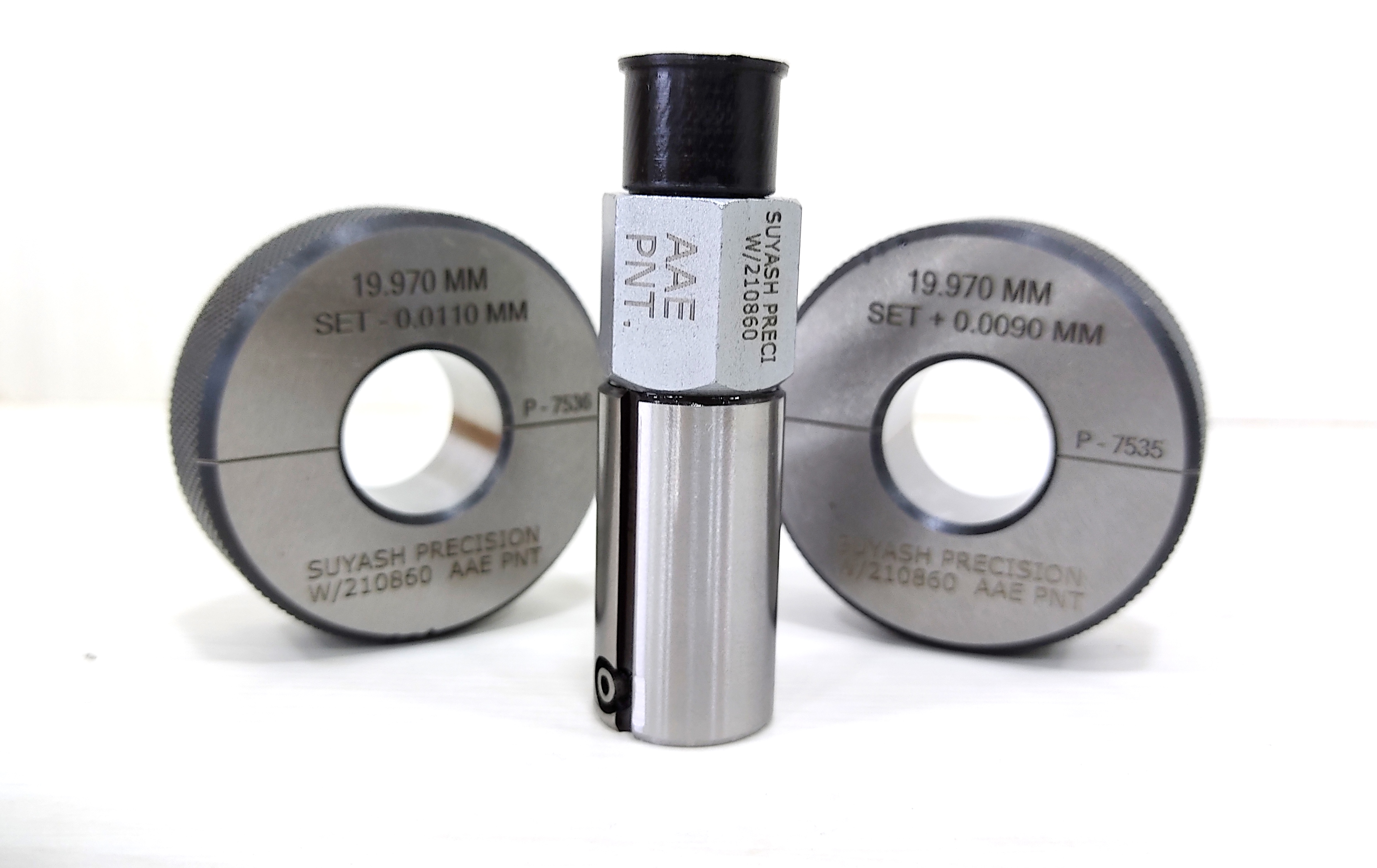

Air Plug Gauges…
- Can be supplied in both steel & carbide
- For Steel range: Ø3 to 100mm
- For Carbide range: Ø10 to 65mm
- Standard Air Plug Gauge is provided with 2-Jet design
- Multi jet design can be catered for ovality/lobe checking purpose.
- Depth collars can be provided for depth adjustment of jet
- Bench mounting & Extensions can be provided as per requirements.
- Supplied for Mod 1A, Mod 2A, C-jet & Digital Air Gauge Units.
- For Blind bore inspection or any other special requirement please send component drawing for better clarification
Technical Specifications

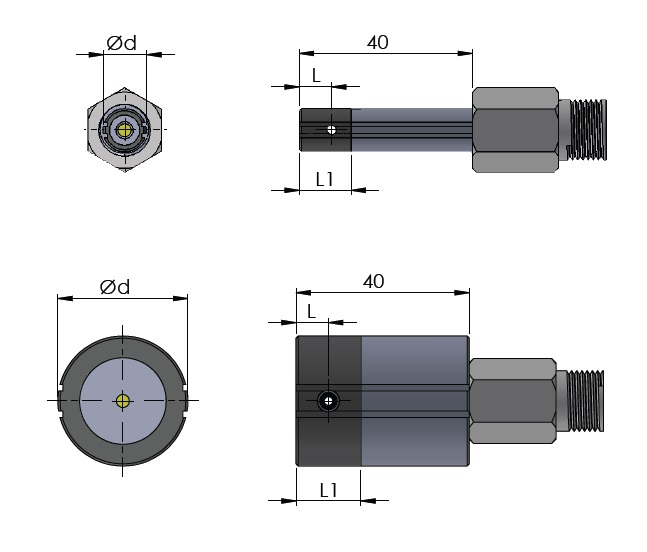

CARBIDE
| NOMINAL DIA (d) in mm |
JET POSITION (L) |
JET POSITION (L1) |
| ABOVE |
UP TO & INCLUDING |
THROUGH |
THROUGH |
BLIND |
| 10 |
12 |
7.5 |
12 |
| 12 |
14 |
7.5 |
12 |
| 14 |
16 |
7.5 |
15 |
| 16 |
20 |
7.5 |
15 |
| 20 |
32 |
7.5 |
15 |
| 32 |
40 |
10 |
15 |
| 40 |
65 |
10 |
20 |

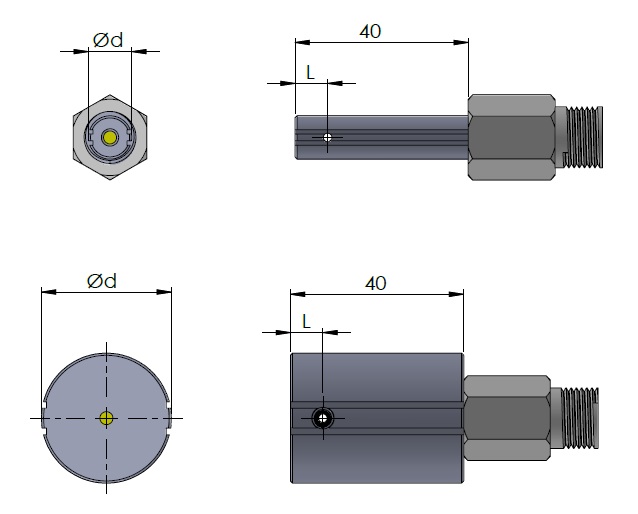

STEEL
| NOMINAL DIA (d) in mm |
JET POSITION |
| ABOVE |
UP TO & INCLUDING |
| 3 |
12 |
7.5 |
| 12 |
20 |
7.5 |
| 20 |
32 |
7.5 |
| 32 |
40 |
10 |
| 40 |
65 |
10 |
| 65 |
10 |
12.5 |
